Marine Propellers: Providing high quality yet affordable solutions.

“For over 35 years Ron Kruger has been selling or servicing marine propellers to builders and boat owners worldwide. Kruger’s passion for providing the end user with a high quality product led him to the Hung Shen company over 20 years ago and a new partnership was formed. Since then, Kruger has grown to be North Americas largest distributor of high quality Hung Shen propellers”

We are an American owned company with a mission is to earn our customers ongoing trust and confidence. We plan to do this by offering the highest quality products and boat propeller services on the market today. Competitive pricing and rapid delivery are top priorities at marinepropellers.com.

Our staff has the technical knowledge to repair, re-pitch or modify any propeller to a higher tolerance level resulting in increased speed, performance and fuel efficiency. Whether it is a re-power, new construction, or just simple modifications, you can count on us to get it right the first time!

Largest inventory in North America of Hung Shen Propellers.
Propeller Design and analysis for higher performance requirements.
Savings up to 40% over competitors on high quality marine propellers.
Custom Propellers manufactured utilizing high precision CNC blade milling machines.
In House Computer Aided Propeller Repair, Inspections & Modifications.

Featured Propeller

EP3 Bronze

Hung Shen EP-3 Blade Propeller.

The EP3 Hung Shen Efficiency Propellers are designed for optimum performance, particularly for vessels with operating speeds less than 28 knots. This type of propeller has high damage resistance due to its relatively thick leading edge. They are widely used by pilot boats, general purpose vessels, police launches, patrol boats and other similar vessels.

Available in 3, 4 & 5 Blade
Diameter Range: 12” – 50”
EAR: 0.50
Available in Bronze, NiBral & Stainless Steel
Design speeds to 28 knots
Tolerance Handcrafted ISO Class-2

Hub Details

Featured Propeller

HTP3 Bronze

Hung Shen HTP-3 Blade Propeller.

The Hung Shen HTP3 Heavy Thrust series propeller is especially suited for use on displacement vessels such as Fishing boats, Sailboats and Work boats. The blade edge is semi-elliptical, with typical ogival blade sections and constant pitch. This series is made without skew to carry out the greatest reverse execution possible.

Available in 3, 4 & 5 Blade
Diameter Range: 12” – 120”
EAR: 0.50
Available in Bronze, NiBral & Stainless Steel
Design speeds to 16 knots
Tolerance Handcrafted ISO Class-2

Hung Shen Props Hub Details

Featured Propeller

EP4 Bronze

Hung Shen EP-4 Blade Propeller.

The EP4 Hung Shen Efficiency Propellers have similar characteristics of the EP3 series, except that the EP4 provides lower vibration levels due to increased blade surface area and number of blades. Therefore it is suitable for higher performance pleasure craft. All have a anti-sing edges installed to reduce propeller induced harmonics.

Available in 3, 4 & 5 Blade
Diameter Range: 12” – 50”
EAR: 0.68
Available in Bronze, NiBral & Stainless Steel
Design speeds to 28 knots
Tolerance Handcrafted ISO Class-2

Hub Details

Featured Propeller

TP2 Bronze

Hung Shen TP-2 Blade Bronze Sailboat Propeller.

The TP2 fixed pitch propeller is the popular choice for sail boaters seeking to maximize sailing speed. It offers minimum drag while under sail and the power to get you where you’re going when the wind stops blowing. The Hung Shen TP Series Propellers are designed for sailboats and provide good efficiency when operating at speeds less than 8 knots.

Diameter Range: 12” – 20”
EAR: 0.22
Available in Bronze
Design speeds to 8 knots
Tolerance Handcrafted ISO Class-2

Hung Shen Props Hub Details

Featured Propeller

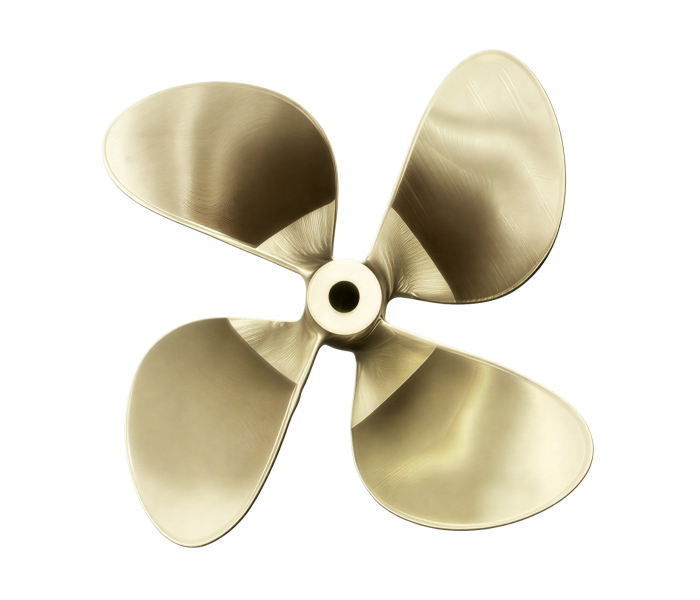

EP4 NiBral

Hung Shen EP-4 Blade NiBral Propeller.

The EP4 Hung Shen NiBral Propellers have similar characteristics of the EP3 series, except that the EP4 provides lower vibration levels due to increased blade surface area and number of blades. Therefore it is suitable for higher performance pleasure craft. Heavy duty NiBral alloy for durable performance. All have a anti-sing trailing edge installed to reduce propeller induced harmonics.

Available in 3, 4 & 5 Blade
Diameters: 13″ – 50″
EAR: 0.68
Design speeds to 40 knots
Also available in Bronze & Stainless Steel
Tolerance Handcrafted ISO Class-2

Hub Details

Featured Propeller

EP3 NiBral

Hung Shen EP-3 Blade NiBral Propeller.

The EP3 Hung Shen NiBral Propellers are designed for optimum performance, particularly for vessels with operating speeds up to 40 knots. This type of propeller has high damage resistance due to its relatively thick leading edge. They are widely used by pilot boats, general purpose vessels, police launches, patrol boats and other similar vessels.

Available in 3, 4 & 5 Blade
Diameters: 13″ – 50″
EAR: 0.50
Design speeds to 40 knots
Also available in Bronze & Stainless Steel
Tolerance Handcrafted ISO Class-2

Hub Details

Featured Propeller

HTP4 Stainless

Hung Shen HTP-4 Blade Stainless Steel Propeller.

The Hung Shen Heavy Thrust series propeller is especially suited for use on displacement vessels such as fishing boats and work boats. The blade edge is semi-elliptical, with typical ogival blade sections and constant pitch. The Hung Shen HTP4 is designed for applications that require excessive power such as commercial fishing boats, push boats and tug boats.

Diameter Range: 20” – 120”
EAR: 0.70
Design speeds to 16 knots
Available in Bronze, NiBral & Stainless
Tolerance Handcrafted ISO Class-2

Hung Shen Props Hub Details

Featured Propeller

HTP4 Bronze

Hung Shen HTP4-Blade Bronze Propeller.

The Hung Shen Heavy Thrust series propeller is especially suited for use on displacement vessels such as fishing boats and work boats. The blade edge is semi-elliptical, with typical ogival blade sections and constant pitch. This series is made without skew to carry out the greatest reverse execution possible. The Hung Shen HTP4 is designed for applications that require excessive power such as commercial fishing boats, push boats and tug boats.

Available in 3, 4 & 5 Blade
Diameters: 13″ – 120″
EAR: 0.70
Design speeds to 16 knots
Also available in NiBral & Stainless Steel
Tolerance Handcrafted ISO Class-2

Hung Shen Props Hub Details

Featured Propeller

SSBP2 Bronze

Hung Shen SSBP-2 Blade Bronze Sailboat Propeller

The Hung Shen SSBP Series Propellers are designed for sailboats and provide good efficiency when operating at speeds less than 8 knots. SSBP propellers are designed with a small amount of skew suitable for Yachts which have wider stern & provide lower cabin noise than that of the TP series propellers. The skewed blade can reduce vibration effectively, and deliver higher thrust.

Diameters: 10″ – 20″
EAR: 0.30
Design speeds to 8 knots
Available in Bronze & NiBral
Tolerance Handcrafted ISO Class-2

Hung Shen Props Hub Details

Featured Propeller

EP5 NiBral

Hung Shen EP-5 Blade NiBral Propeller

The EP5 Hung Shen Efficiency Propellers has a larger expanded area ratio than that of the EP3 and EP4 series. This type of propeller is suitable for high power vessels and for vessels in which the noise and vibration in the cabin are critical. The EP series propellers have high damage resistance due to their relatively thick leading edge.

Diameters: 17″ thru 50″
Available in 3B, 4B & 5B
EAR: 0.85
Available in Bronze, NiBral & Stainless
Design speeds to 40 knots
Tolerance: Handcrafted ISO Class-2

Hub Details

Featured Propeller

AD5 Stainless

Hung Shen AD-5 Blade Stainless Propeller

Advantage series propellers outperform conventional three and four blade propellers providing good fuel economy, low vibration and no harmful cavitation in both design and off design conditions.

Available in 5 Blade
Diameter Range: 20” – 50”
EAR: 0.7 – 1.05
Optimized variable pitch distribution
Advanced new foil blade sections
Available in Bronze, NiBral & Stainless Steel (CF3)
Low vibration and low noise
Manufactured by CNC

More Details

Featured Propeller

AD5 NiBral

Hung Shen AD-5 Blade NiBral Propeller

Advantage series propellers outperform conventional three and four blade propellers providing good fuel economy, low vibration and no harmful cavitation in both design and off design conditions.

Available 5 Blade
Diameter Range: 20” – 50”
EAR: 0.7 – 1.05
Optimized variable pitch distribution
Advanced new foil blade sections
Available in Bronze, NiBral & Stainless Steel (CF3)
Low vibration and low noise
Manufactured by CNC

More Details

Featured Propeller

NVP4 NiBral

Hung Shen NVP-4 Blade NiBral Propeller

The NVP series is excellent at gaining acceleration and maneuverability on vessels that require a high level of performance to get up on a plane. The outstanding gripping ability of the NVP propeller allows the boat to hold its planning speed better while in severe maneuvers and during sharp turns.

Available in 4B & 5B
Diameter Range: 17” – 50”
EAR: 0.69 – 1.06
Available in Bronze, NiBral & Stainless Steel (CF3)
Manufactured by CNC
Design speeds to 36 knots

Hung Shen Props Hub Details

Featured Propeller

NVP5 NiBral

Hung Shen NVP-5 Blade NiBral Propeller

The NVP series is a high performance propeller using new-foil sections to increase performance and decrease sensitivity to the angle of attack created by an inclined shaft position. This propeller is able to control cavitation extension on the surface of the blade in turn avoiding breakdown in thrust.

Available in 4B & 5B
Diameter Range: 17” – 50”
EAR: 0.69 – 1.06
Available in Bronze, NiBral & Stainless Steel (CF3)
Manufactured by CNC
Design speeds to 36 knots

Hung Shen Props Hub Details

Featured Propeller

TAP4 Bronze

Hung Shen TAP-4 Blade Propeller

Thrust Ability propeller Tap-4 blade series is designed to increase the effectiveness, and maneuverability of high performance displacement fishing vessels and work boats. New research and development incorporates NACA blade sections, variable pitch dispersal, 10 degrees of rake with little skew.

Available in 4 Blade
E.A.R. 0.60
Diameter Range: 40″ – 120″
Designed for speeds up to 18 knots.
Materials: Bronze, NiBral & Stainless Steel
Tolerance Handcrafted ISO Class-2

Hung Shen Props More Details

Featured Propeller

NAP5 Bronze

Hung Shen NAP-5 Blade Propeller

Hung Shen Neo-Ability Propeller works well on all types of displacement vessels by providing excellent maneuverability and performance. The Hung Shen NAP series propeller incorporates 10 degrees of rake and a small amount of skew.

Available in 3B, 4B & 5B
E.A.R. 0.45 – 0.75
Diameter Range: 20″ – 120″
Designed for speeds up to 18 knots.
Available in Bronze, NiBral & Stainless Steel (CF3)
Tolerance Handcrafted ISO Class-2

Hung Shen Props Hub Details

Featured Propeller

ASP5 NiBral

Hung Shen ASP-5 Blade NiBral Propeller

Hung Shen ASP series propellers were designed for use on very high speed vessel, when both propeller revolutions and advance speed are high. Both ASP-5 blade and ASP-6 blade series propellers provide high efficiency excellent acceleration and smooth operation.

ASP available in 5 and 6 blade configurations
Diameter Range: 18” – 50”
EAR: 0.7 – 1.15
Manufactured by CNC
Available in NiBral & Stainless Steel (CF3)
Design speeds to 50 knots

Hung Shen Props More Details

Featured Propeller

NSP4 NiBral

Hung Shen NSP-4 Blade NiBral Propeller

This new high speed propeller employs advanced new-foil blade technology to decrease sensitivity to cavitation while operating at inclined shaft levels. The optimized variable pitch distribution and Non-linear blade skew of 18-36 degrees creates an average increase in speeds of 1 knot over 25 knots, or greater over other propellers.

Available in 4B, 5B, 6B, & 7B
Diameter Range: 20” – 50″
EAR: 0.7 – 1.20
Available in Bronze, NiBral & Stainless Steel (CF3)
Manufactured by CNC
Design speeds to 42 knots

Hung Shen Props More Details

Featured Propeller

HSP4 NiBral

Hung Shen HSP-4 Blade NiBral Propeller

The HSP-4 blade series propeller is designed for achieving low vibration and low noise. The highly skewed propeller can reduce stern vibration by as much as 40% and reduce the noise in the cabin, thus improving the living quality of crews onboard. The HSP series is typically supplied in NiBral.

Available in 3B, 4B & 5B
Diameter Range: 20” – 120”
EAR: 0.45 – 0.75
Available in Bronze, NiBral & Stainless Steel (CF3)
Design speeds to 18 knots
Manufactured by CNC

Hung Shen Props Hub Details

Featured Propeller

SSP4 NiBral

Hung Shen SSP-4 Blade NiBral Propeller

The Hung Shen Super Series Propeller is designed for use on high speed planning vessels. By using new foil sections, the pressure distribution on the blade is not sensitive to the change of the angle of attack.

Available in 3B, 4B, & 5B
Diameter Range: 24” – 50”
EAR: 0.7 – 1.20
Design speeds to 45 knots
Manufactured by CNC
Available in Bronze, NiBral & Stainless Steel (CF3)

Hung Shen Props More Details

Featured Propeller

KCA4 NiBral

Hung Shen KCA-4 Blade NiBral Propeller

The KCA-4 blade series are designed with wider blades to control cavitation on the blade surface, and have good efficiency for operating speeds lower than 30 knots. The vibration level induces by this series is lower than that of the KCA-3 blade series.

Available in 3B, 4B, & 5B
Diameter Range: 20” – 50”
EAR: 0.55 – 1.05
Available in Bronze, NiBral & Stainless Steel (CF3)
Design speeds to 30 knots
Manufactured by CNC

Hung Shen Props Hub Details

Featured Propeller

KP4 Stainless

Hung Shen KP-4 Blade Stainless Propeller

The Hung Shen KP Kaplan Propeller is made especially for operating in a duct environment. The large tip chord lengths feature of this propeller create higher thrust than a conventional propeller. If metal fatigue and erosion are concerns the propeller should be made in Stainless Steel or NiBral.

Available in 3, & 4 Blades
E.A.R. 0.55 – 0.70
Diameter Range: 10″ – 120″
Designed for speeds up to 17 knots.
Materials: Bronze, NiBral & Stainless Steel
Tolerance: Handcrafted ISO Class-2

Hung Shen Props More Details

Featured Propeller

NSP7 NIBRAL

Hung Shen NSP-7 Blade NiBral Propeller

This new high speed propeller employs advanced new-foil blade technology to decrease sensitivity to cavitation while operating at inclined shaft levels. The optimized variable pitch distribution and Non-linear blade skew of 18-36 degrees creates an average increase in speeds over 25 knots, of 1 knot or greater over other propellers.

Available in 4B, 5B, 6B, & 7B
Diameter Range: 20” – 50”
EAR: 0.7 – 1.20
NSP increases speed more than 1 knot when compared to KCA
Available in Bronze, NiBral & Stainless Steel (CF3)

Hung Shen Props More Details

Featured Propeller

KCA3 NiBral

Hung Shen KCA-3 Blade NiBral Propeller

The KCA-3 blade series is a conventional propeller that has relatively good efficiency for operating at speeds less than 30 knots. However the vibration and noise induced by this type of propeller for medium and high shaft inclinations is marginal.

Available in 3B, 4B, & 5B
Diameter Range: 20” – 50”
EAR: 0.55 – 1.05
Available in Bronze, NiBral & Stainless Steel (CF3)
Design speeds to 30 knots
Manufactured by CNC

Hung Shen Props Hub Details

Featured Propeller

NSP5 NiBral

Hung Shen NSP-5 Blade NiBral Propeller

This new high speed propeller employs advanced new-foil blade technology to decrease sensitivity to cavitation while operating at inclined shaft levels. The optimized variable pitch distribution and Non-linear blade skew of 18-36 degrees creates an average increase in speeds over 25 knots, of 1 knot or greater over other propellers.

Available in 4B, 5B, 6B, & 7B
Diameter Range: 20” – 50″
EAR: 0.7 – 1.20
Available in Bronze, NiBral & Stainless Steel (CF3)
Low vibration and low noise

Hung Shen Props More Details

Featured Propeller

HSP3 NiBral

Hung Shen HSP-3 Blade NiBral Propeller.

The HSP-3 blade series is designed for achieving low vibration and low noise. The highly skewed propeller can reduce stern vibration by as much as 40% and reduce the noise in the cabin, thus improving living quality’s of crews on board.

Available in 3B, 4B & 5B
Diameter Range: 20” – 120”
EAR: 0.45 – 0.75
Available in Bronze, NiBral & Stainless Steel (CF3)
Design speeds to 18 knots

Hung Shen Props Hub Details

Featured Propeller

ESP4 NiBral

Hung Shen ESP-4 Blade NiBral Propeller

ESP series propellers were designed for use on very high speed vessels, when both propeller revolutions and advance speed are high. ESP-4 blade series propellers provide high efficiency and smooth operation when operating in super cavitating conditions.

ESP available in 4 Blades
Diameter Range: 18” – 50”
EAR: 0.7 – 0.85
Manufactured by CNC
Available in NiBral & Stainless Steel (CF3)
Design speeds to 50 knots

Hung Shen Props More Details

Featured Propeller

TP3 Bronze

Hung Shen TP-3 Blade Bronze Sailboat Propeller.

The TP-3 fixed pitch propeller is the popular choice for sail boaters seeking to maximize sailing speed. It offers minimum drag while under sail and the power of a 3 blade to get you going when the wind stops blowing.

Diameter Range: 12” – 18”
Available in 2 or 3 blade
EAR: 0.33
Available in Bronze & NiBral
Design speeds to 8 knots
Tolerance Handcrafted ISO Class-2

Hung Shen Props Hub Details

Featured Propeller

SKCA4 NIBRAL

Hung Shen SKCA-4 Blade NiBral Propeller

The SKCA 4 and 5 blade series are designed with skewed blades to insure smooth opperation, control blade surface cavitation, and give high efficiency when operating in tunnel applications at less than 32 knots. Modified from the standard KCA series, vibration levels induced by this series is lower than that of the standard KCA series propellers.

Available in 4 & 5 blade
Diameter Range: 22” – 50”
EAR: 0.65 – 1.05
Available in NiBral & Stainless Steel (CF3)
Design speeds to 32 knots
Manufactured by CNC

Hung Shen Props Hub Details

Featured Propeller

EP4 Stainless

Hung Shen EP4 Blade Stainless Propeller.

The Hung Shen EP4 series Stainless Steel Propellers offer extra durability for all commercial applications. Corrosion resistant Stainless Steel CF3 alloy insures high damage resistance and dependable operation. All have anti-sing trailing edge installed to reduce propeller induced harmonics.

Available in 3B, 4B, 5B
Diameters: 22″ thru 50″
EAR: 0.68
Available in Bronze, NiBral & Stainless
Design speeds to 40 knots
Tolerance Handcrafted ISO Class-2

Hub Details
