The HSP-3 blade series is designed for achieving low vibration and low noise. The highly skewed propeller can reduce stern vibration by as much as 40% and reduce the noise in the cabin, thus improving the living quality of crews onboard. The HSP series is typically supplied in NiBral.
The HSP-4 & 5 blade series have similar characteristics than that of the HSP3 series. These propellers are designed for those customers who prefer to have very low vibration and noise levels in the cabin. The HSP-5 blade series has a larger blade area the either the HSP3 or HSP4 blade series. Thus the HSP5 blade is more suitable for higher horsepower applications.
- Available in 3B, 4B & 5B
- Diameter Range: 20” – 120”
- EAR: 0.45 – 0.75
- Available in Bronze, NiBral & Stainless Steel (CF3)
- Design speeds to 18 knots

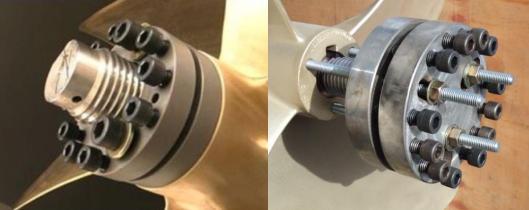

Custom Prop Smith Propeller Pullers ready to ship for 1 ¾” thru 5” shafts. Recommended for five blade propellers with EAR 0.85 and higher.
866-790-7767
